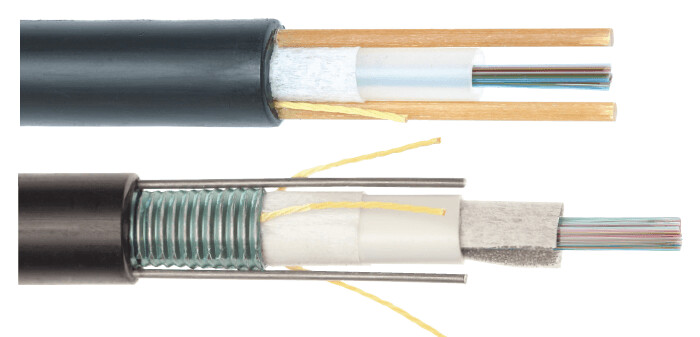

FusionLink™ with FlexRibbon® Technology provides an ultra-compact outside plant cable design that contains 96 to 288 bend insensitive fibers. By using FlexRibbon® technology, ribbons are rolled up and packed together in small diameter sub unit. While FlexRibbon® provides high packing density, these 250 ųm fiber ribbons still provide the advantages of mass fusion splicing
Ultra Compact Design
• FlexRibbons® are rolled up into a compact central tube
• Significantly smaller diameter and lighter weight cables allow for easier installation and the use of smaller ducts
FlexRibbon® Technology
• Extremely flexible ribbons can be rolled up for high packing densities or laid flat for ribbon splicing
• 12 fiber ribbons are compatible with mass fusion heat strippers, cleavers, and splice machines
• Uses standard 250 um coated bend-insensitive fiber (ITU G657.A1 or A2)
Performance
• Uses full dry water blocking technology in the tubes and cable core for easy closure preparation and termination
• Tested in accordance with ICEA 640 and with relevant EIA/ TIA-455 series FOTPs for fiber optic cables
